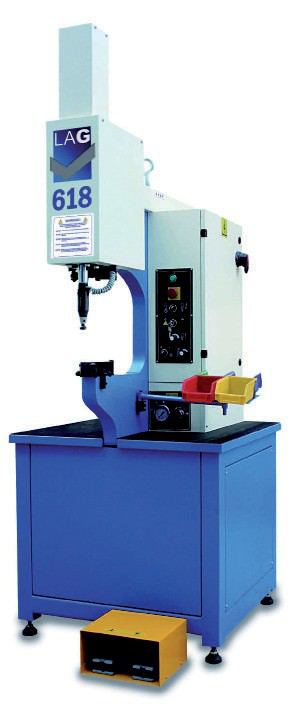

主要特点:

- 高刚性整体式加工的机身结构,压铆工作过程中无 变形，确保压铆精度

- 按人体工程学设计的机身结构及完美的模具组 合，简便灵活的操作模式，一个人就可以方便的完 成大部分复杂的压铆工作

- 快速设置最佳的目标压铆力并保证压力重复精度 达到±1%

- 冲压载荷：最大54KN

- 喉深： 458mm

- 最新设计的高可靠性、高稳定的节能液压系统

- 100%防压手安全系统;

- 最大可以压接M10碳钢螺母于碳钢基材

- 标准颜色：蓝白

- 标准电压：3相380V/50HZ

Main Feature

-High stiffness, structure, high stability, less vibration, high accuracy

-Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator

-Quick press force setting and repeatability ±1%

-Ram force range MAX 54KN

-Throat depth 458 mm

-100% safety system

-Energy saving Re-design reliability and energy efficiency of

a full hydraulic system

-Optional auto feeding system and clinching joint system

-Possibility to insert M10 nut with the mild steel

-Blue &white color

-Standard power supply 3 phase 380v/50hz
