机器的主要特点:

- 高刚性整体式加工的机身结构,压铆工作过程 中无变形，确保压铆精度

- 按人体工程学设计的机身结构及完美的模具组 合，简便灵活的操作模式，一个人就可以方便的 完成大部分复杂的压铆工作

- 快速设置最佳的目标压铆力并保证压力重复精 度达到±1%;

- 冲压载荷：最大72KN

- 喉深：    610mm

- 最新设计的高可靠性、高稳定的节能液压系统

- 100%防压手安全系统

- 标配模具保护限位装置

- 最大可以压接M12碳钢螺母于碳钢基材

- 通过调整保压时间可以最大压铆M8的不锈钢螺 母在不锈钢板材等较硬的材料

- 标准颜色：蓝白

- 标准电压：3相380V/50HZ

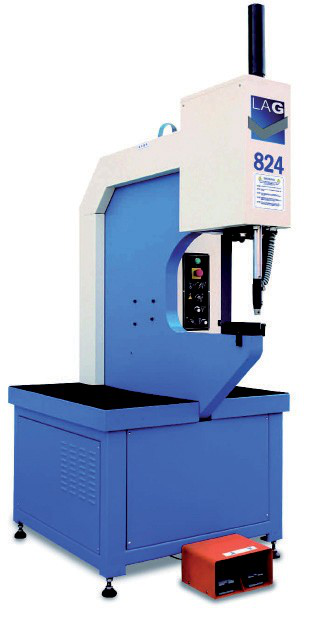

Main Feature

-High stiffness, structure, high stability, less vibration, high accuracy

-Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator

-Quick press force setting and repeatability ±1%

-Ram force range MAX 72KN

-Throat depth 610 mm

-Energy saving Re-design reliability and energy efficiency

of a full hydraulic system

-100% safety system

-Standard Tooling Protection System

-Optional auto feeding system and self -clinch tooling

-Possibility to insert M12 nut with the mild steel

-Variable dwell time for use stainless steel M8 nut and materials and the others hard materials

-Blue &white color

-Standard power supply 3 phase 380v/50hz
